Custom Steel Beam Drawing

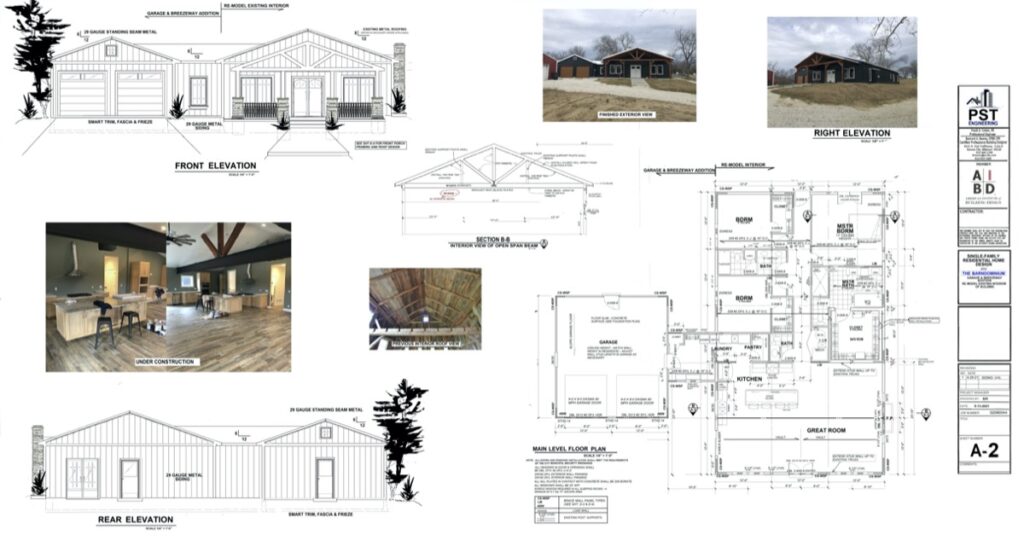

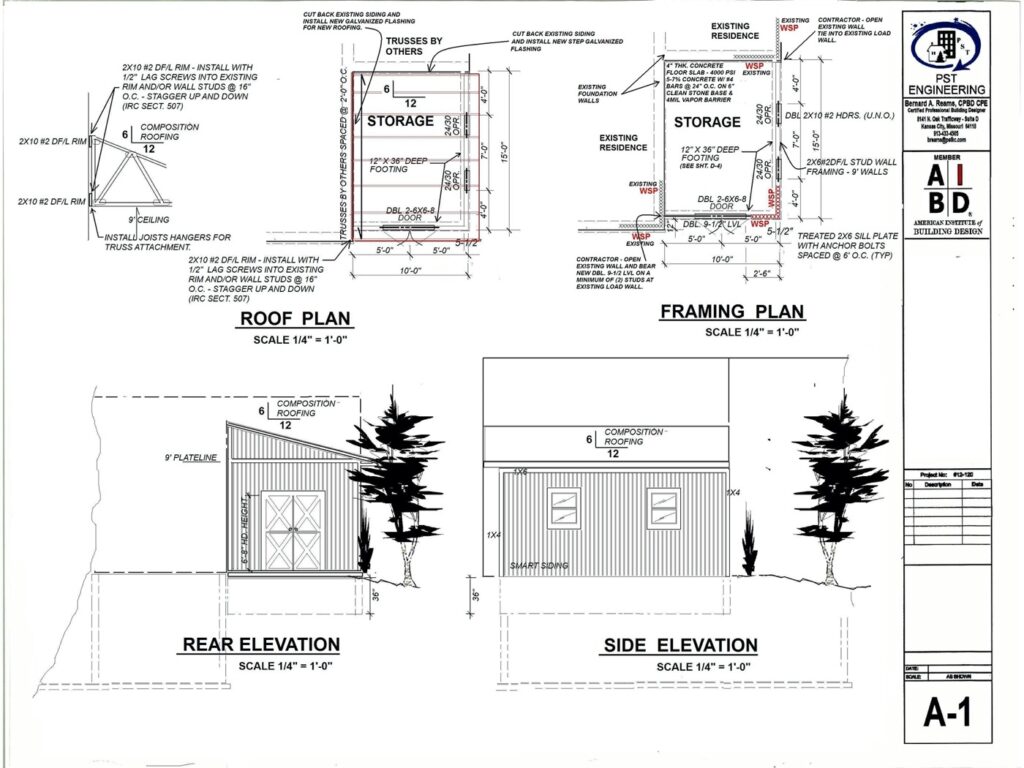

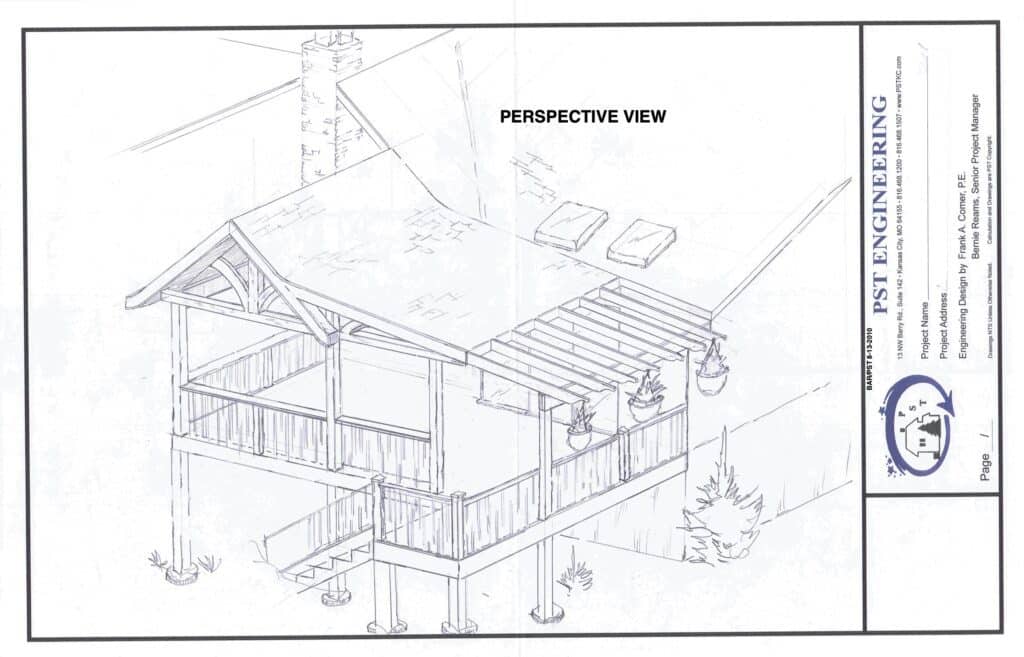

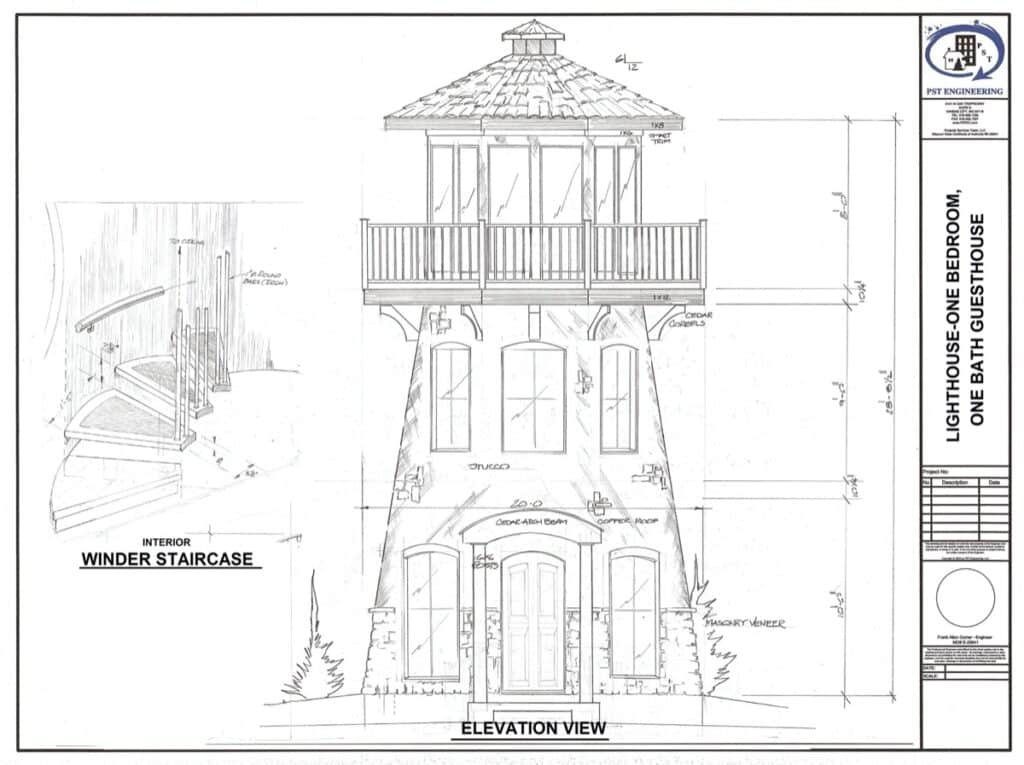

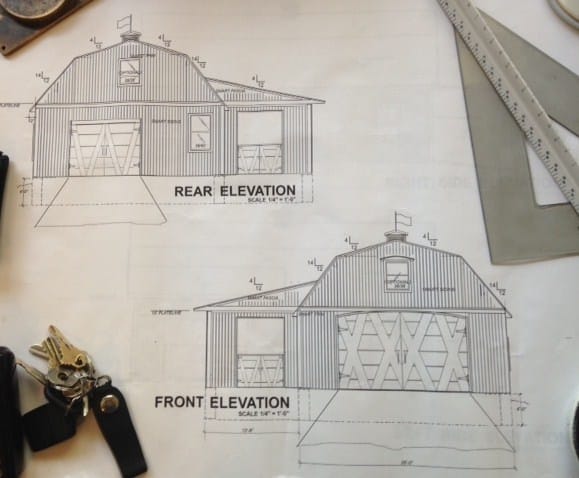

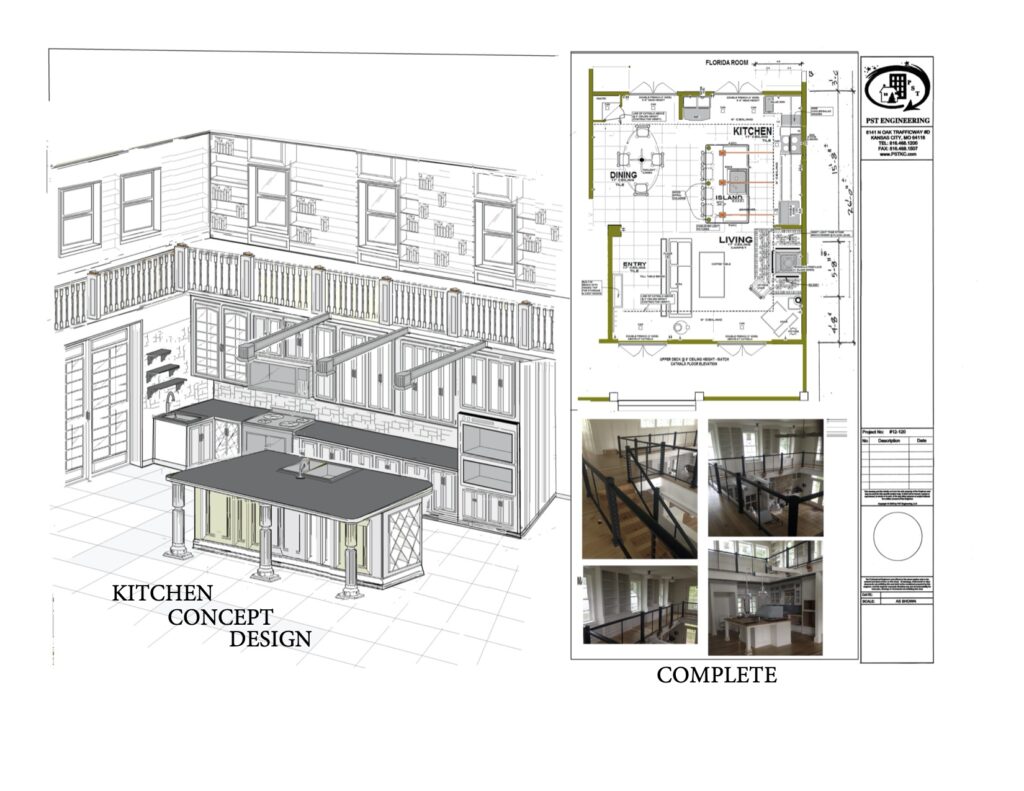

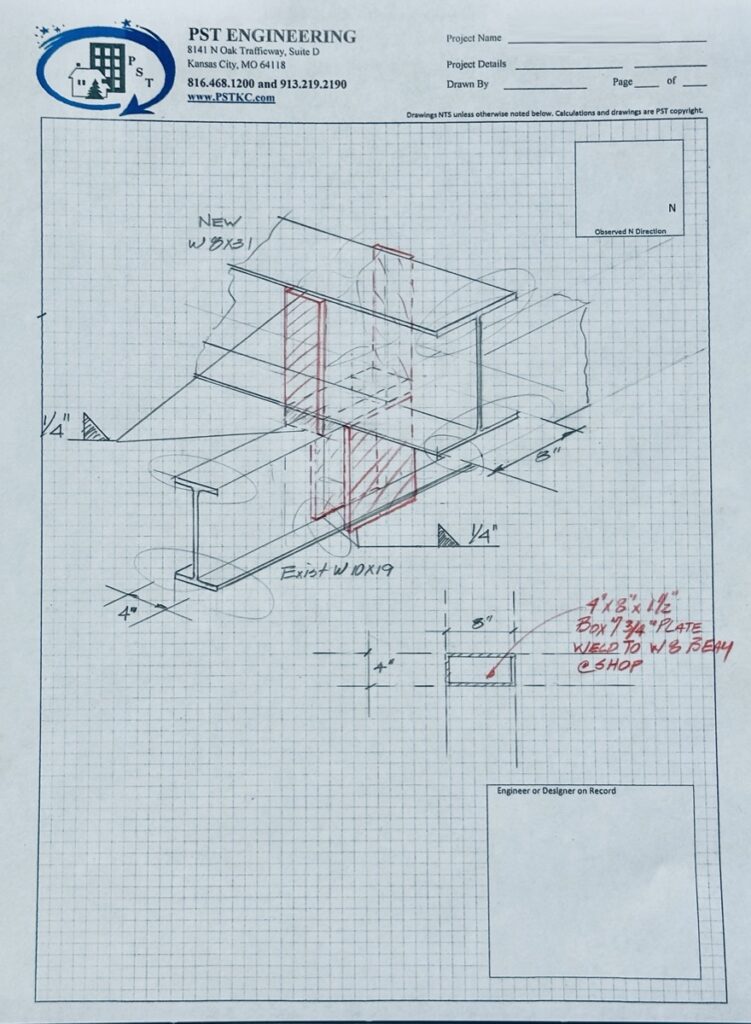

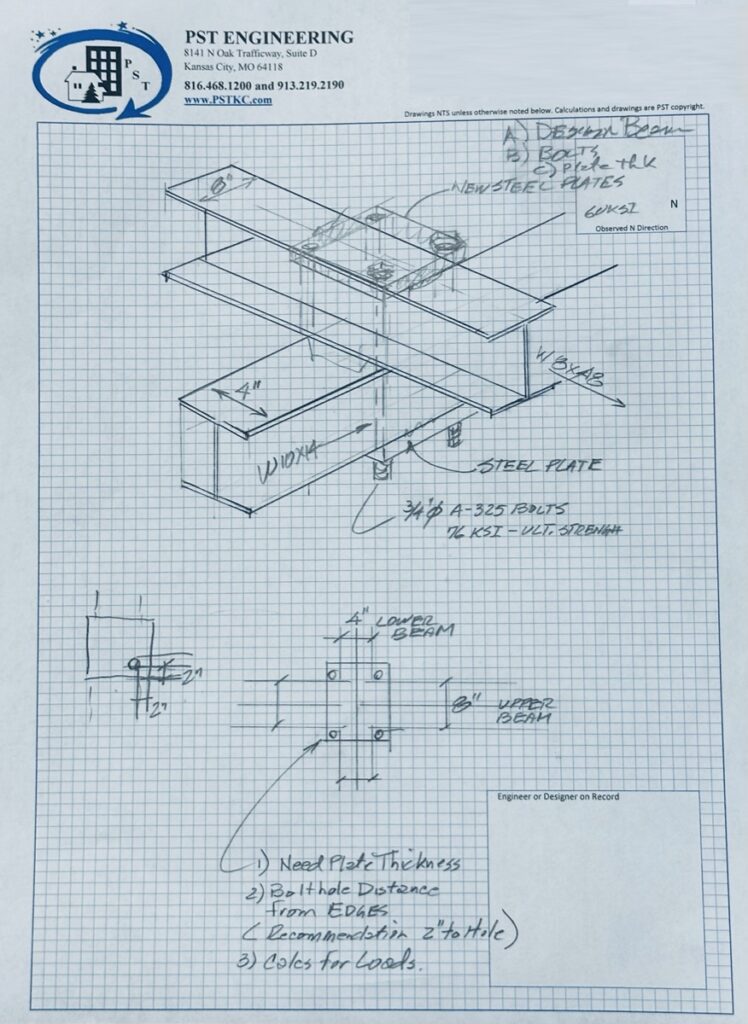

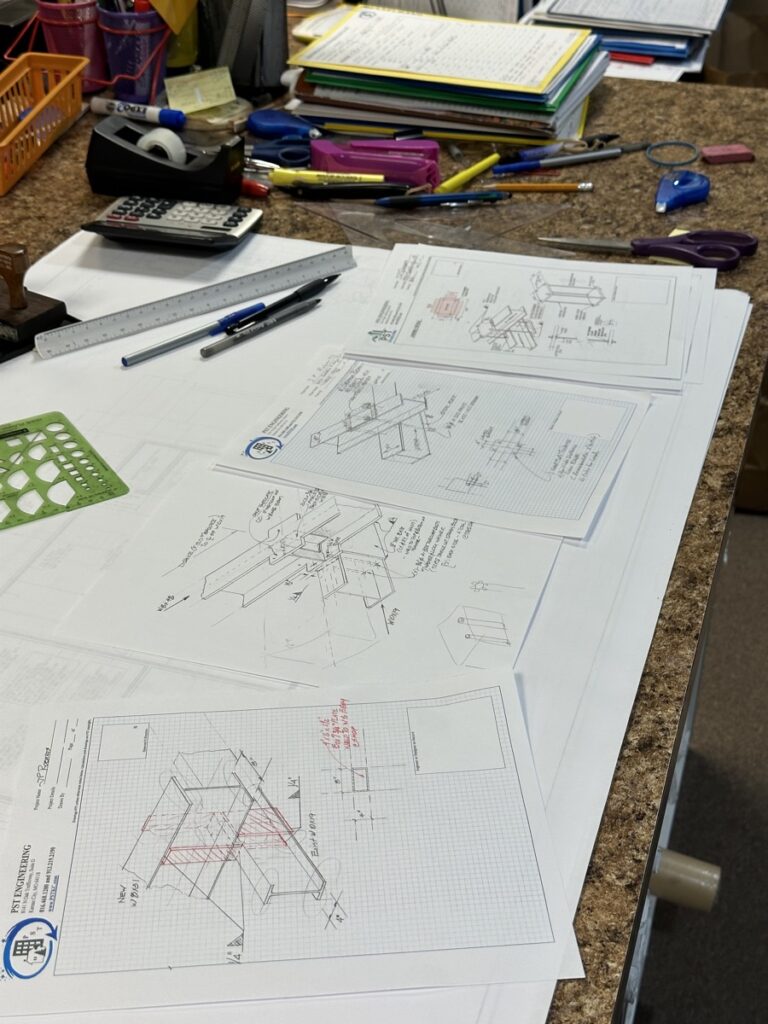

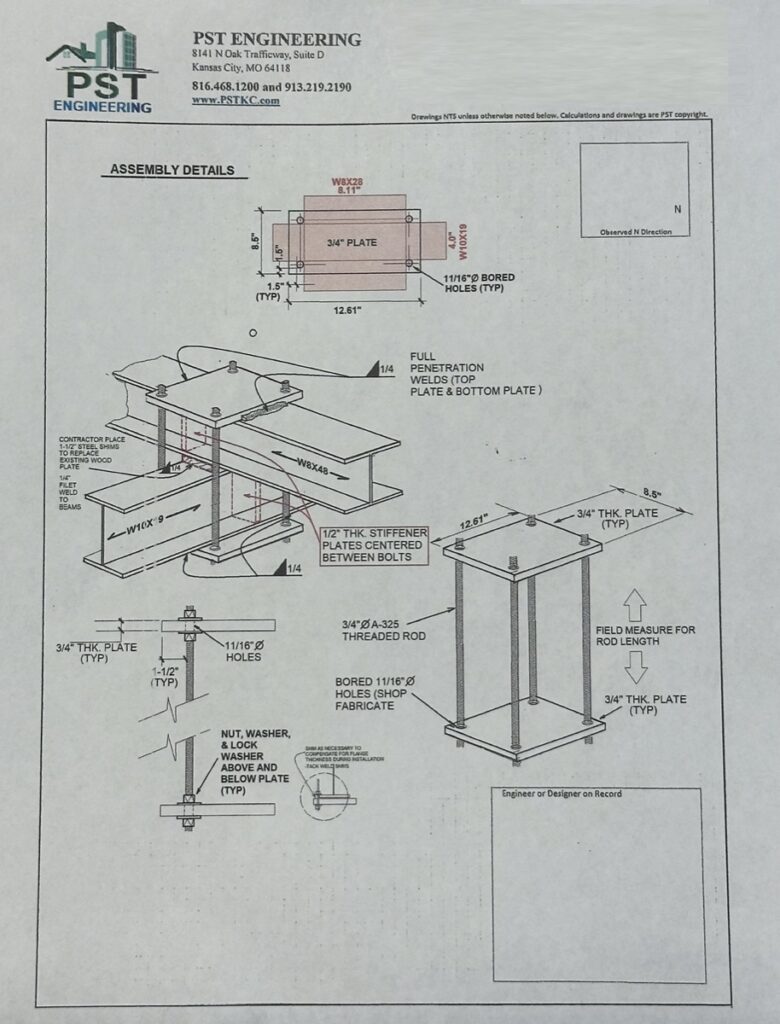

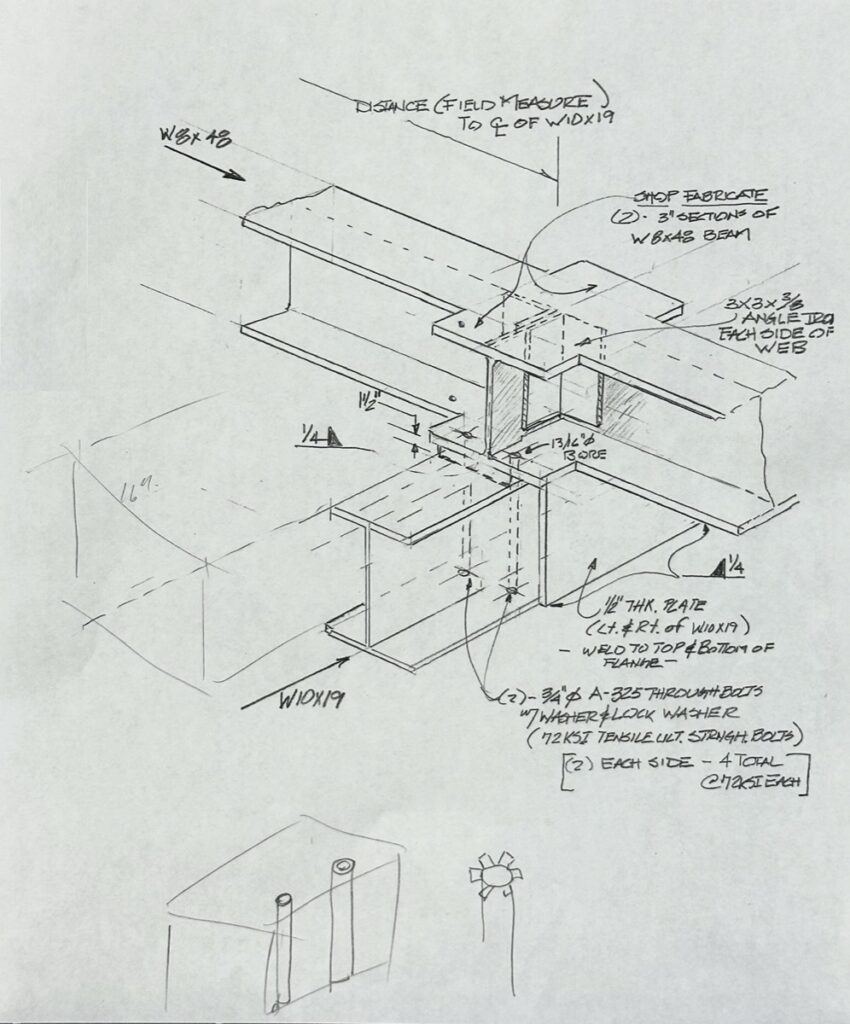

This is a recent hand drawn structural schematic by Bernie. The client needed a
custom steel beam connection to remove a load bearing post and wall. Bernie drew out on paper what he envisioned, then ran the calculations to properly support the floor loads. Then he converted his custom drawing into a digital format.

Call Robin to set up and appointment with Bernie to discuss your needs.

MM cupolo drw (1) (1) (2)
MM cupolo drw (1) (1) (6)

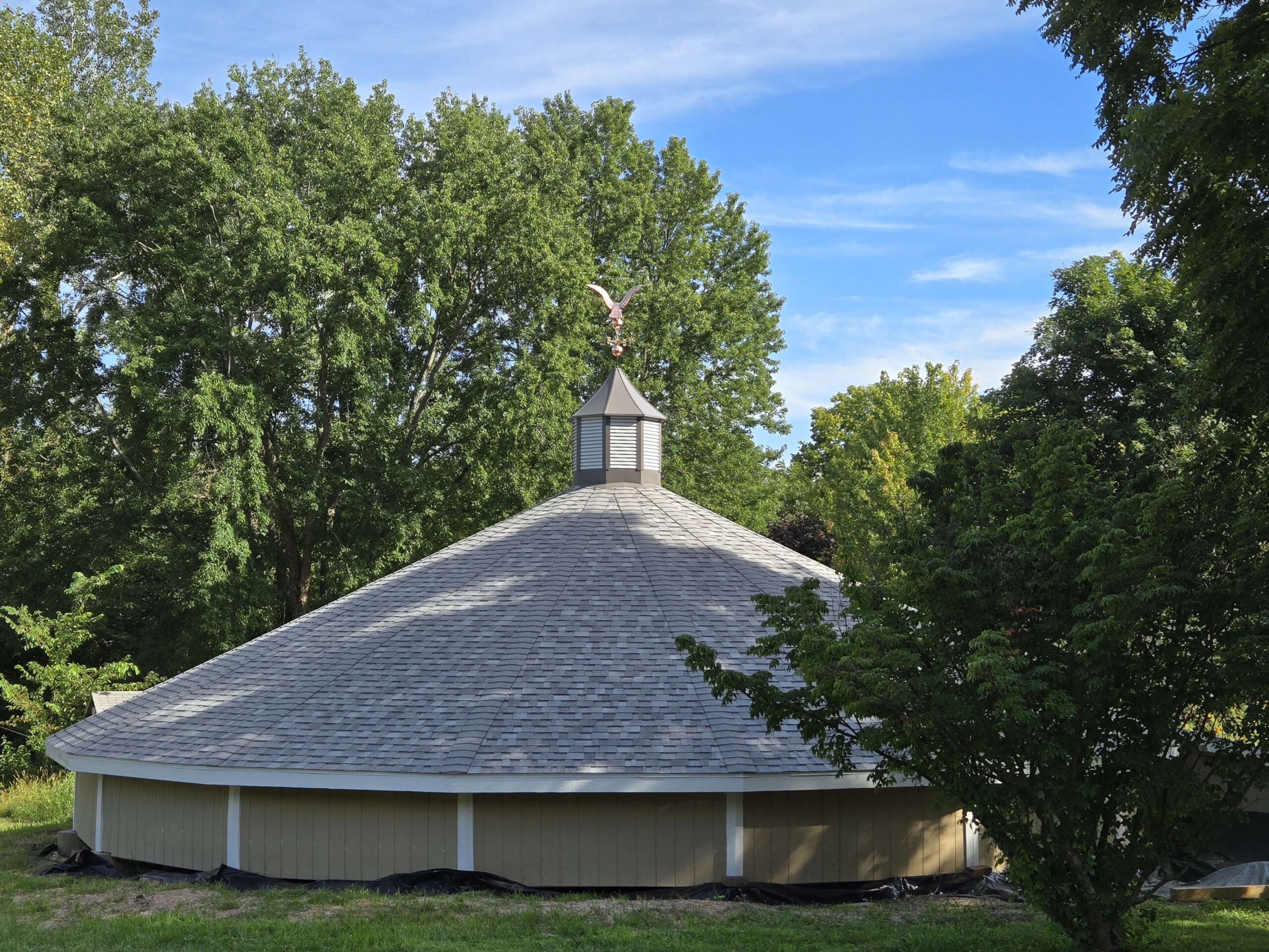

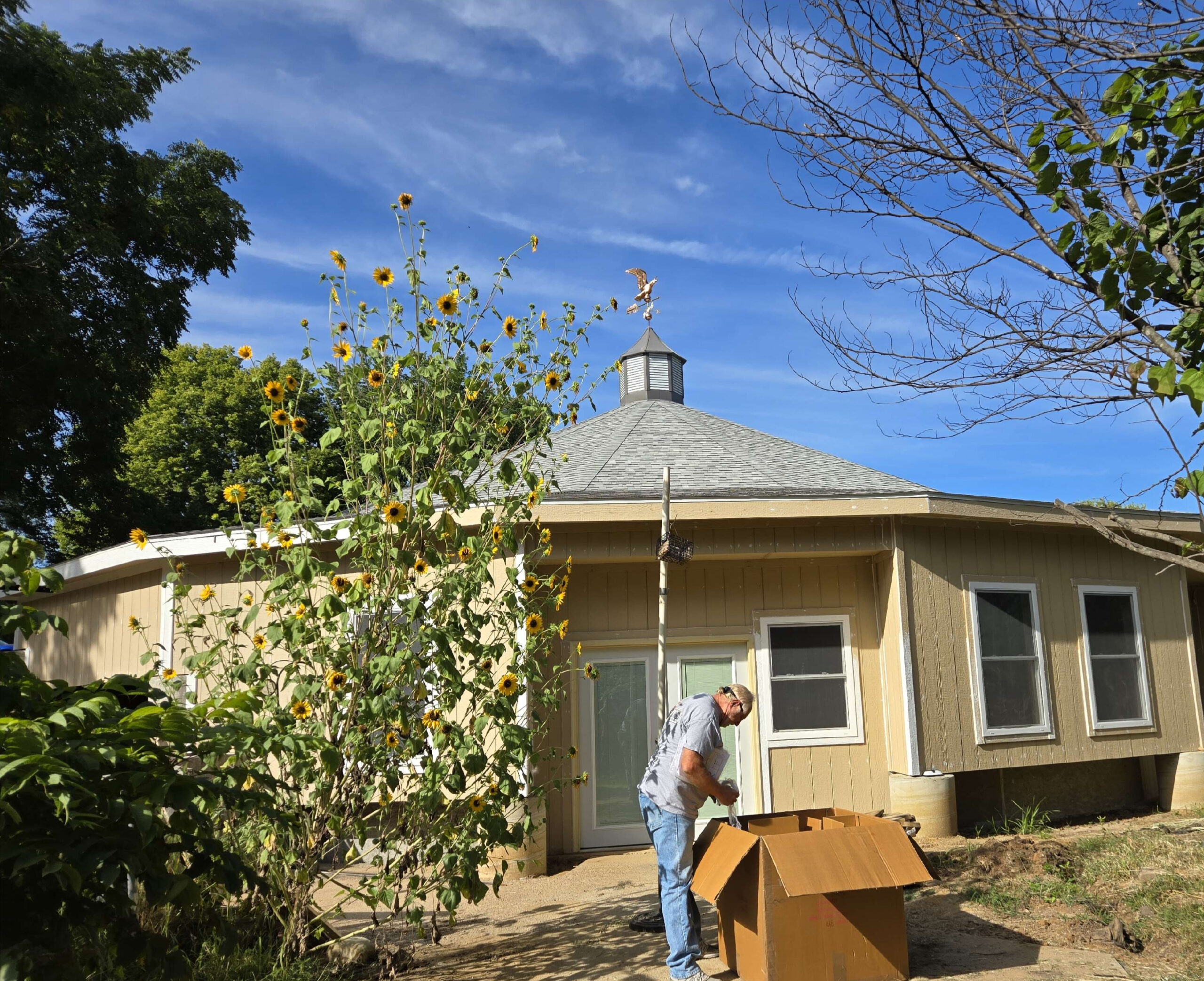

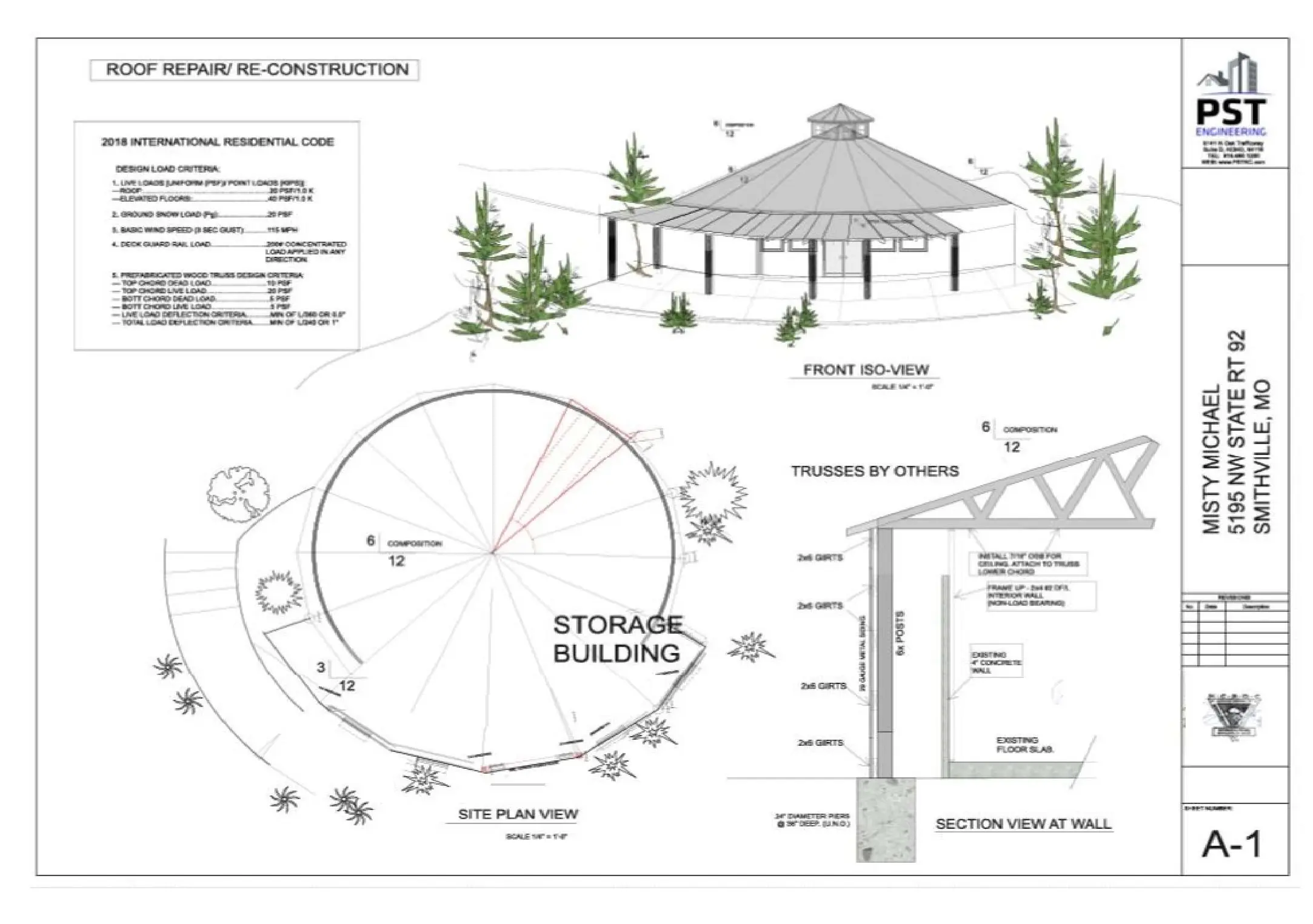

This building was originally a round concrete wall
design where the existing foundation support wall was
only 4" thick. Since the building was destroyed by fire,
the re-construction could not be done with the thin 4"
wall due to building code requirements, so a pier
system was designed on the outside of the existing wall
and a truss roof system was configured for the roof
with a cupolo. The final building was 48' in diameter
clear span throughout the interior space.

MM cupolo drw (1) (1) (4)
